TGL Phantom Series
Architectural Pendant
Fixtures
Overview
The TGL Phantom Series Architectural Pendant Fixtures offer inspiring modern aesthetics, leading edge LED lighting technology and performance at a great value. Transform your space with the next evolution in LED Luminaires and create unique modern interior designs.
Features
- Leading edge transparent light source that provides indirect and direct lighting distribution.
- Innovative modern sleek design, transparent when off and solid when on.
- Linkable to create longer lighting fixtures.
- 3 Colour Adjustable (3000K, 3500K, 4000K) to adapt to multiple specifications.
- Provides direct / indirect light.
- Advanced driver with 120-347V range adapts to any install condition.
- Dimmable 0 – 10V
- Optional lighting controls and sensors.

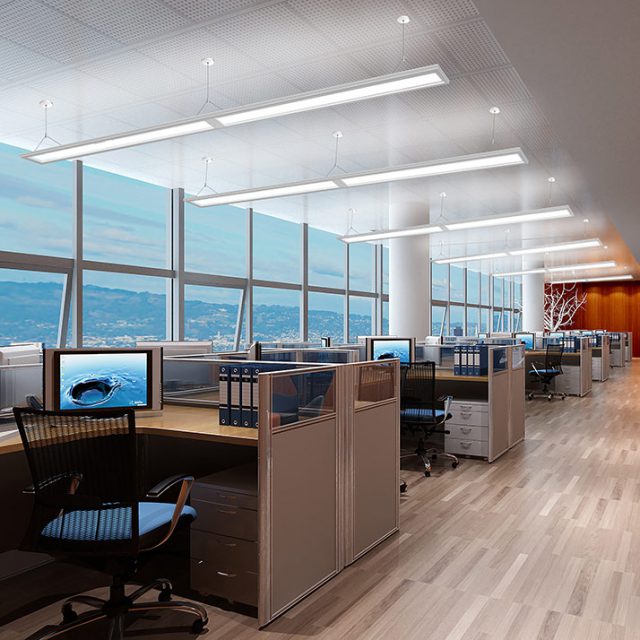

TGL Ghost Double Sided Transparent Panel (TGL-GDSP)
The Phantom Series Ghost – Double sided panel features an advanced LED optical lighting system that delivers performance and aesthetics. The led light source when powered down becomes transparent, then when powered up becomes solid and delivers 4200 lumens with 45% Uplight and 55% Downlight. The fixture also has ability to change between 3 color temperatures (3000K, 3500K, 4000K) and features our leading edge internal driver that can handle voltages 120-347V giving fixture great flexibility.
- Click to View
- Specifications
- Documents
- Videos
| Type | Model Number | Voltage | Watts | Lumens | Colour Temp | Beam Angle | CRI | Dimmable | Lumen / Watt |
|---|---|---|---|---|---|---|---|---|---|
| Ghost Panel | TGL-GDSP-40W-30K | 120-347V | 40W | 4200 | 3000K | 360 | 80 | Yes | 105 |
| Ghost Panel | TGL-GDSP-40W-35K | 120-347V | 40W | 4200 | 3500K | 360 | 80 | Yes | 105 |
| Ghost Panel | TGL-GDSP-40W-40K | 120-347V | 40W | 4200 | 4000K | 360 | 80 | Yes | 105 |
| Type | Model Number | Data Sheets | IES Files | Install Instructions | Brochure |
|---|---|---|---|---|---|
| Ghost Panel | TGL-GDSP-40W-30K | View | X | View | TGL Phantom Pendants |
| Ghost Panel | TGL-GDSP-40W-35K | View | X | ||
| Ghost Panel | TGL-GDSP-40W-40K | View | X |
No videos
Features
- Ultra Slim design, with multiple mounting options (Suspended, Wall Mount, Surface Mount).
- Linkable to create multiple unique designs.
- Provides both direct and indirect light with adjustable lighting distributions.
- Advanced driver with 120-347V range adapts to any install condition.
- 3 Colour Adjustable (3000K, 3500K, 4000K).
- Dimmable 0 – 10V
- Optional lighting controls and sensors.

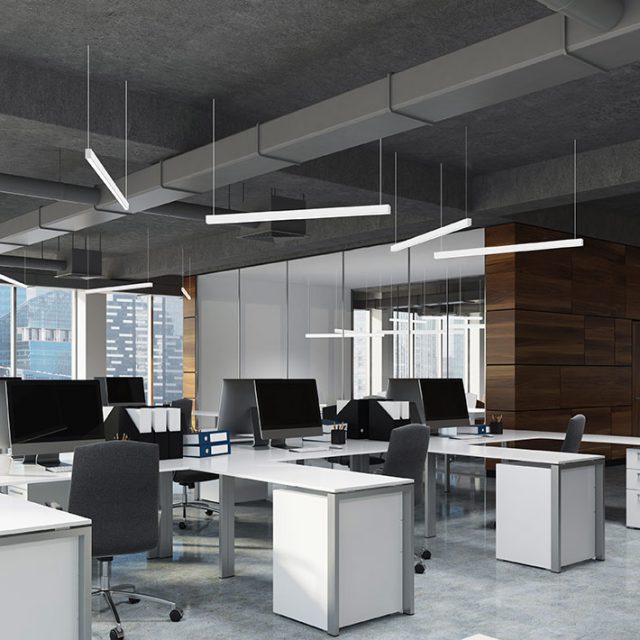

TGL RA Linear Pendant (TGL-RA)
The RA Linear Pendent is an ultra slim elegant luminaire that can be surface mounted, wall mounted or suspended. Alternatively let your creativity flow and connect multiple luminaires to create unique designs with clean seamless illumination without visible hot spots.
- Click to View
- Specifications
- Documents
- Videos
| Type | Model Number | Voltage | Watts | Lumens | Colour Temp | Beam Up/Down | CRI | Dimmable | Lumen / Watt |
|---|---|---|---|---|---|---|---|---|---|
| RA 4FT | TGL-RA4-40W-30K | 120-347V | 40W | 4200 | 3K – 4K | 150/100 | 80 | Yes | 105 |
| RA 4FT | TGL-RA4-40W-35K | 120-347V | 40W | 4200 | 3K – 4K | 150/100 | 80 | Yes | 105 |
| RA 4FT | TGL-RA4-40W-40K | 120-347V | 40W | 4200 | 3K – 4K | 150/100 | 80 | Yes | 105 |
| Type | Model Number | Data Sheets | IES Files | Install Instructions | Brochure |
|---|---|---|---|---|---|
| RA 4FT | TGL-RA4-40W-30K | View | X | View | TGL Phantom Pendants |
| RA 4FT | TGL-RA4-40W-35K | View | X | ||
| RA 4FT | TGL-RA4-40W-40K | View | X |
No videos
Features
- Leading edge transparent light source that provides direct and side to side lighting distribution.
- Innovative modern sleek design, transparent when off and solid when on.
- Linkable to create longer lighting fixtures.
- Advanced driver with 120-347V range adapts to any install condition.
- 3 Colour Adjustable (3000K, 3500K, 4000K).
- Dimmable 0 – 10V
- Optional lighting controls and sensors.
TGL Phantom Vertical Pendant (TGL-PHM4)
The TGL-PHM4 Vertical Pendent offers innovative transparent light source, clean vertical rectangular geometry and is loaded with features. This contemporary, high quality fixture uses the latest solid-state lighting and driver technology for optimal performance and energy efficiency. A distinguished innovative design that complements modern interiors.
- Click to View
- Specifications
- Documents
- Videos
| Type | Model Number | Voltage | Watts | Lumens | Colour Temp | Beam Angle | CRI | Dimmable | Lumen / Watt |
|---|---|---|---|---|---|---|---|---|---|
| Pendent | TGL-PHM4-30W | 120-347V | 30W | 4000 | 3K-4K | 120 | 80 | Yes | 100 |
| Pendent | TGL-PHM4-35W | 120-347V | 35W | 4000 | 3K-4K | 120 | 80 | Yes | 100 |
| Pendent | TGL-PHM4-40W | 120-347V | 40W | 4000 | 3K-4K | 120 | 80 | Yes | 100 |
| Type | Model Number | Data Sheets | IES Files | Install Instructions | Brochure |
|---|---|---|---|---|---|
| Pendent | TGL-PHM4-30W | View | X | View | TGL Phantom Pendants |
| Pendent | TGL-PHM4-35W | View | X | ||
| Pendent | TGL-PHM4-40W | View | X |
No videos
